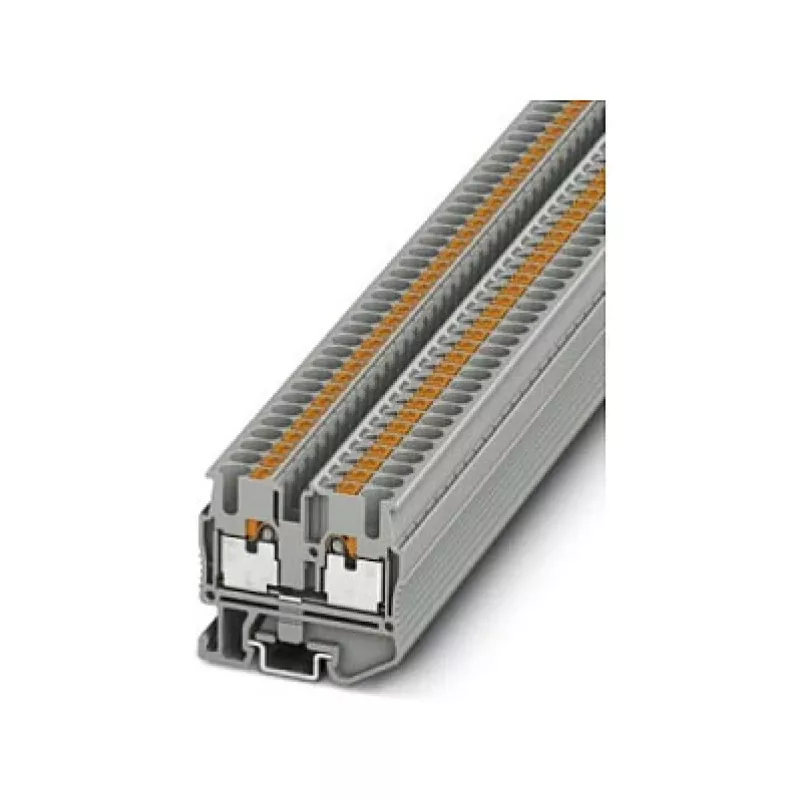

Phoenix Contact MPT 2.5 mini praleidžiamasis gnybtų blokas, įstumiamas jungimas, 2.5 mm², 500 V, 24 A, pilkas

When every millimetre of DIN rail counts and wiring time is money, the Phoenix Contact MPT 2.5 mini feed-through terminal block is the quiet workhorse your control cabinet deserves. Its push-in connection turns cable termination into a one-second job – no screwdriver, no torque settings, just a firm push and you're done. That's the kind of simplicity that adds up fast when you're building panels day in, day out.

Why you'll love it

• Push-in technology: wire solid or stranded conductors instantly – no tools needed, no loose screws to re-tighten later.
• Compact mini design: frees up valuable space on your DIN rail, letting you pack more circuits into the same footprint.
• Rated for 500 V and 24 A (IEC): plenty of headroom for typical industrial control and automation loads.
• Grey PA housing with UL 94 V0 rating: tough, flame-retardant, and ready for the long haul.
• Works in extreme cold or heat: from -60 °C to 105 °C, it won't flinch in demanding environments.

In your daily work

Picture this: you're wiring a distribution board or a PLC interface. With the MPT 2.5, you simply strip 8 mm of insulation, push the conductor in, and it locks securely. The clear marking on the housing reminds you of the strip length, so there's no guesswork. It accepts solid wires from 0.14 mm² to 4 mm² and stranded from 0.14 mm² to 2.5 mm² – flexible enough for most control circuits. The two positions give you a clean feed-through point, and the grey colour blends seamlessly with other rail-mounted components. Plus, with pollution degree 3 and overvoltage category III, it's built to shrug off the grime and surges found in real industrial settings.

Key specifications at a glance

• Connection method: Push-in
• Number of positions: 2
• Nominal cross section: 2.5 mm²
• Rated voltage (IEC): 500 V
• Rated current (IEC): 24 A
• Colour: Grey
• Insulating material: PA (Polyamide)
• Flammability rating (UL 94): V0
• Operating temperature: -60 °C to 105 °C
• Mounting type: DIN rail (NS 35/7.5, NS 35/15, NS 32)
• Stripping length: 8 mm
• Conductor cross section solid: 0.14 mm² - 4 mm²
• Conductor cross section stranded: 0.14 mm² - 2.5 mm²
• Pollution degree: 3
• Overvoltage category: III
• Standards/approvals: IEC 60947-7-1, UL, cUL, EAC, VDE

Final note

For a maintenance-free connection that speeds up your wiring and tightens up your panel layout, the Phoenix Contact MPT 2.5 is a smart pick. It's the kind of small component that makes a big difference to your productivity.
