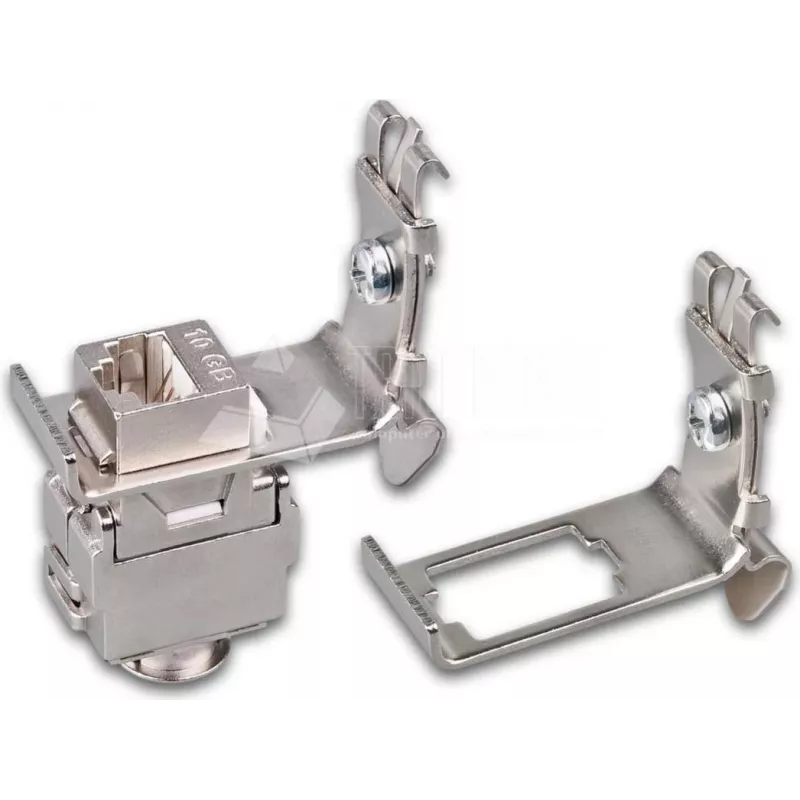

Wirewin DIN Rail Adapter for Keystone Jack Mounting, Metal Keystone System (WKS DIN RAIL HOLDER 1)

When you're wiring a control cabinet or automation panel, you need network connections that stay put and don't clutter the DIN rail. The Wirewin WKS DIN RAIL HOLDER 1 is a metal adapter that snaps onto a standard 35mm DIN rail and holds a Keystone jack securely, so you can run Ethernet lines cleanly and reliably in tough environments.

Kam skirtas

This adapter is made for system integrators, panel builders, and maintenance technicians who work with industrial networking, control cabinets, and building automation. It's also handy for anyone who needs to mount a Keystone jack on a DIN rail without drilling or using special tools.

Pagrindinės savybės

• Compatible with standard Keystone jacks (19.2 x 14.9 mm)
• Mounts on 35mm DIN rail (EN 50022) with snap-on installation
• Constructed from zinc die-cast metal for industrial-grade robustness
• Single-port design for compact, space-saving integration
• Enhanced EMI/RFI shielding for stable signal integrity
• Tool-free Keystone insertion and removal
• Metallic grey finish blends with industrial equipment

Specifikacijos

• Product Type: DIN Rail Adapter
• Material: Metal (Zinc Die-Cast)
• Number of Ports: 1
• Mounting Type: 35mm DIN Rail (EN 50022)
• Keystone Compatibility: Standard Keystone Jacks (19.2 x 14.9 mm)
• Operating Temperature: -20°C to +70°C
• Humidity: 10% to 90% non-condensing
• Color: Metallic Grey
• Installation: Snap-on DIN Rail, Tool-free Keystone insertion
• Shielding: Enhanced EMI/RFI Shielding
• Application: Industrial Networking, Control Cabinets, Building Automation
• Standards Compliance: EN 50022

Kaip naudoti

Snap the adapter onto a 35mm DIN rail, then insert a standard Keystone jack until it clicks into place. No tools required. To remove, simply press the release tab and pull the jack out. The adapter can be repositioned along the rail as needed.

Patarimai

Ensure the DIN rail is clean and properly seated before snapping the adapter into place. For optimal shielding, use shielded Keystone jacks and cables. The adapter can be easily repositioned along the rail to accommodate changing layouts.
