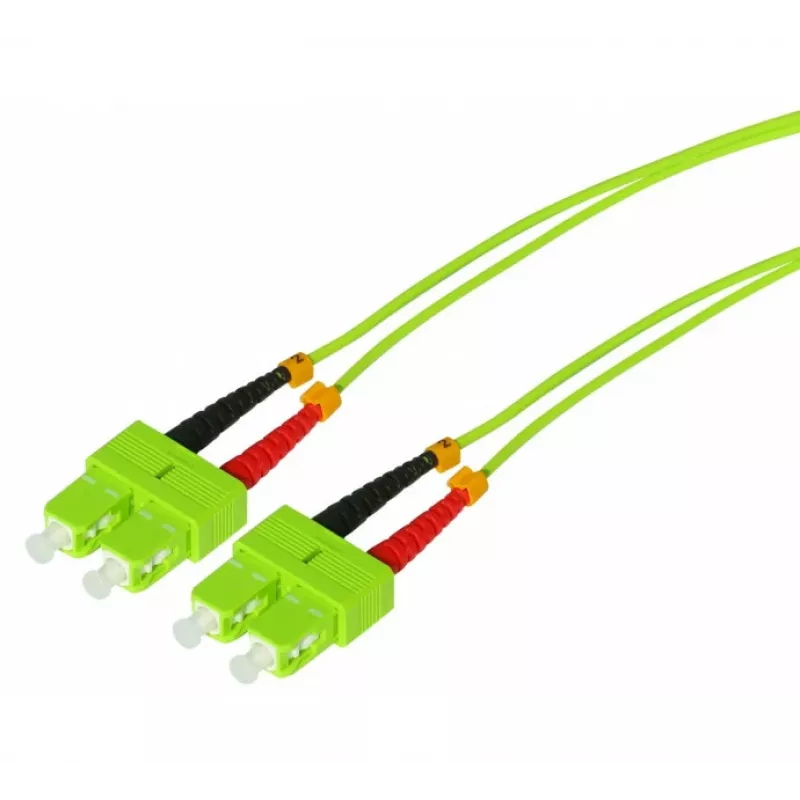

Tecline HD Fiber Optic komutacinis kabelis OM5, SC Duplex į SC Duplex, Lime Green, 5 m 796SS05

That lime green jacket is not just a style choice — it's your instant visual cue that this is an OM5 wideband multimode fiber cable, ready for 40G and 100G Ethernet. The Tecline HD 796SS05 patch cable brings that clarity to your rack, with SC duplex connectors on both ends and a 5-meter length that's just right for patching between panels, switches, and servers.

Why OM5 matters for your network

OM5 fiber is designed for short-reach high-speed links, supporting SWDM4 wavelengths from 850 nm to 953 nm. That means you can run 40G or 100G over a single pair of fibers without the cost of single-mode optics. And because OM5 is backwards compatible with OM3 and OM4, you can drop it into existing multimode installations without a full overhaul.

Key advantages for your setup

• Wideband multimode fiber (50/125 µm) handles 850 nm, 953 nm, and 1300 nm wavelengths
• SC duplex to SC duplex connectors with A-B polarity for consistent link orientation
• Low insertion loss (< 0.3 dB) and high return loss (> 30 dB) keep your signal clean
• Lime green jacket for instant OM5 identification per industry color coding
• 5.0 m length ideal for patching between panels, switches, and servers in racks

Who it's for

Network engineers and IT professionals deploying high-density fiber infrastructure in data centers, enterprise backbones, or campus networks. If you're upgrading to 40/100G multimode connectivity while keeping a standard SC duplex interface, this cable is for you.

Specifications

• Fiber type: Multimode OM5 (50/125 µm)
• Connectors: SC Duplex to SC Duplex
• Length: 5.0 m
• Jacket color: Lime green
• Number of fibers: 2
• Polarity: A-B
• Insertion loss: < 0.3 dB
• Return loss: > 30 dB
• Supported wavelengths: 850 nm, 953 nm, 1300 nm
• Bandwidth at 850 nm: 4700 MHz·km
• Bandwidth at 953 nm: 2470 MHz·km
• Operating temperature: -20°C to 70°C
• Storage temperature: -40°C to 85°C
• Standards: TIA/EIA-492AAAE, IEC 60793-2-10 Type A1a.4

How to use it

Simply plug the SC duplex connectors into your patch panel and switch or server ports, matching the A-B polarity. The 5-meter length gives you flexibility in rack layouts without excess slack. For 100G SWDM4 links, keep total channel length within the OM5 reach specification.

Tips: Always clean and inspect fiber connectors before mating — a single speck of dust can cause significant signal loss. Store spare cables with dust caps on to protect the end faces. And remember, while OM5 is backwards compatible, you'll get the full wideband benefit only when both ends of the link use OM5 or better.
