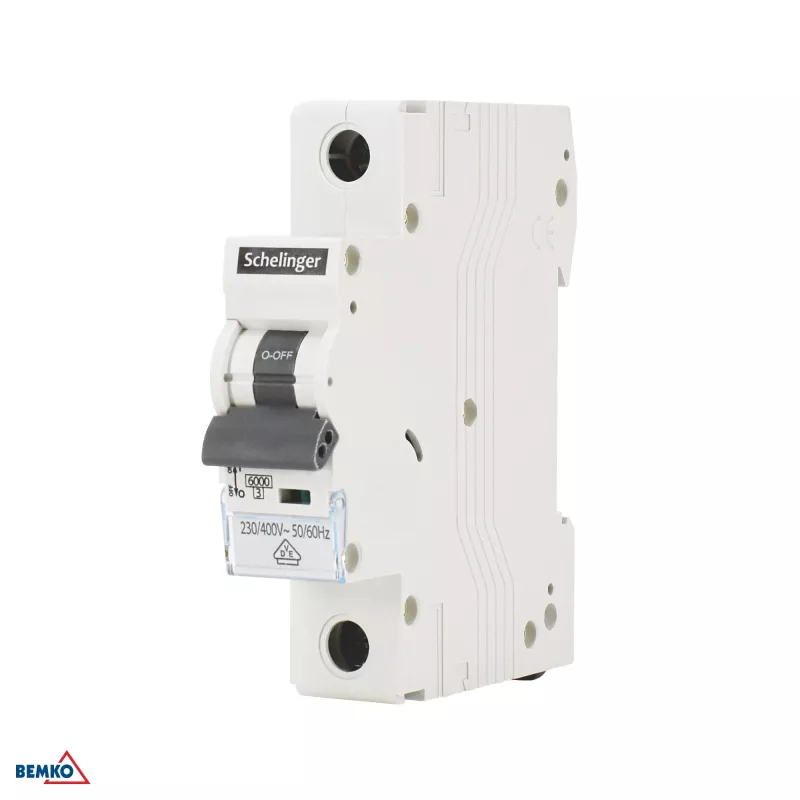

Schelinger A02-G8-1P-B32 6kA 1-Polio B-Charakteristikos 32A Miniatiūrinis Automatinis Jungiklis

When the lights flicker or the kettle trips the fuse, you want to know your home's wiring is in safe hands. The Schelinger A02-G8-1P-B32 miniature circuit breaker is that quiet guardian, ready to cut the power in a fraction of a second if something goes wrong. With a 32 A rating and a B-curve that responds swiftly to overloads, it keeps your everyday circuits running smoothly — no drama, just protection.

Why this breaker makes sense

This single-pole MCB is built to protect lighting and socket circuits in homes and small offices. Its 6 kA breaking capacity means it can safely interrupt even serious short circuits, while the B-curve trips quickly on moderate overloads — perfect for general-purpose wiring. And because it's just 18 mm wide, you can fit more circuits in your consumer unit without sacrificing safety.

What you'll appreciate

• Clear ON/OFF/trip indicator — you'll always know the status at a glance
• Long life: at least 10,000 electrical operations and 20,000 mechanical ones
• Works in temperatures from -25°C to +50°C, so it's fine in unheated garages
• Energy limiting class 3 for extra protection against arc damage
• Screw terminals accept wires from 1 to 25 mm² — easy, secure connections

Key specifications

• Poles: 1P
• Rated current (In): 32 A
• Tripping curve: B
• Rated voltage (Ue): 230 V AC
• Rated frequency: 50/60 Hz
• Mounting: DIN rail (35 mm)
• Terminal capacity: 1-25 mm² (solid/stranded)
• Protection degree: IP20
• Standards: IEC/EN 60898-1, VDE
• Module width: 1 module (18 mm)

How to use it

Simply clip it onto your DIN rail, connect the incoming and outgoing wires to the screw terminals, and you're set. It's ideal for circuits that power multiple sockets or lights — think living rooms, kitchens, or small workshops. The B-curve means it won't trip on the brief inrush of a fridge or a few LED bulbs, but it'll act fast if there's a real problem.

Our verdict: A dependable, compact MCB that meets strict safety standards — perfect for protecting circuits in homes and small commercial buildings. The 32 A rating and B-curve make it a versatile choice for a wide range of applications.
