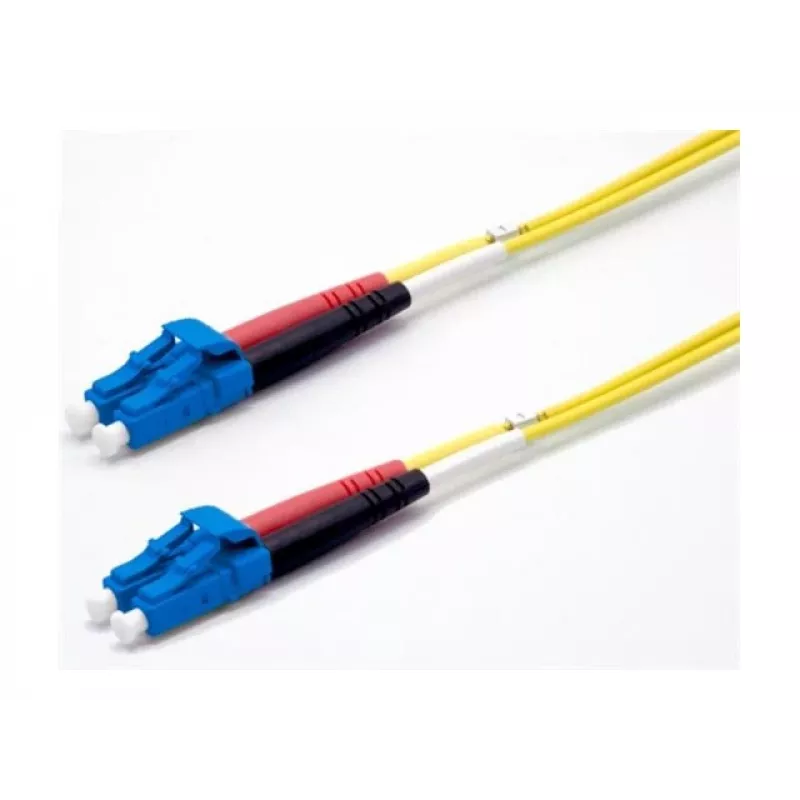

Ekivalan OS2 LC/LC Duplex Singlemode Fiber Optic Patch Cable 0.5m Yellow COZ008LCLC2SJ0005A

When you're setting up a data center or a high-speed network, every fraction of a decibel matters. A poor connection can cause signal loss and reflection, dragging down performance. This Ekivalan OS2 single-mode duplex patch cable is built to keep your signal clean and reliable, with low insertion loss and high return loss.

Who is it for

Network engineers and IT professionals who need a dependable fiber link for 10G/40G/100G Ethernet, Fibre Channel, or other high-bandwidth applications. Whether you're patching in a server room or connecting switches, this cable delivers the performance you expect.

Main features

• OS2 single-mode fiber, 9/125 µm core/cladding
• LC duplex to LC duplex connectors with ceramic ferrules
• 0.5 m length, yellow LSZH jacket
• Insertion loss ≤ 0.3 dB, return loss ≥ 50 dB
• Operating temperature -20°C to 70°C

Specifications

• Cable type: Fiber optic patch cable, duplex
• Fiber mode: Single-mode OS2
• Core diameter: 9 µm
• Cladding diameter: 125 µm
• Connector 1: LC duplex
• Connector 2: LC duplex
• Cable length: 0.5 m
• Jacket material: LSZH
• Jacket colour: Yellow
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 50 dB
• Attenuation at 1310 nm: ≤ 0.35 dB/km
• Attenuation at 1550 nm: ≤ 0.25 dB/km
• Operating temperature: -20°C to 70°C
• Minimum bend radius: 10 mm (dynamic)

Tips

Use with OS2-compatible transceivers and patch panels. Avoid exceeding the minimum bend radius to maintain signal integrity.

Pro tip: Always check that your transceivers are compatible with OS2 single-mode fiber, and keep the connectors clean to avoid signal degradation.
